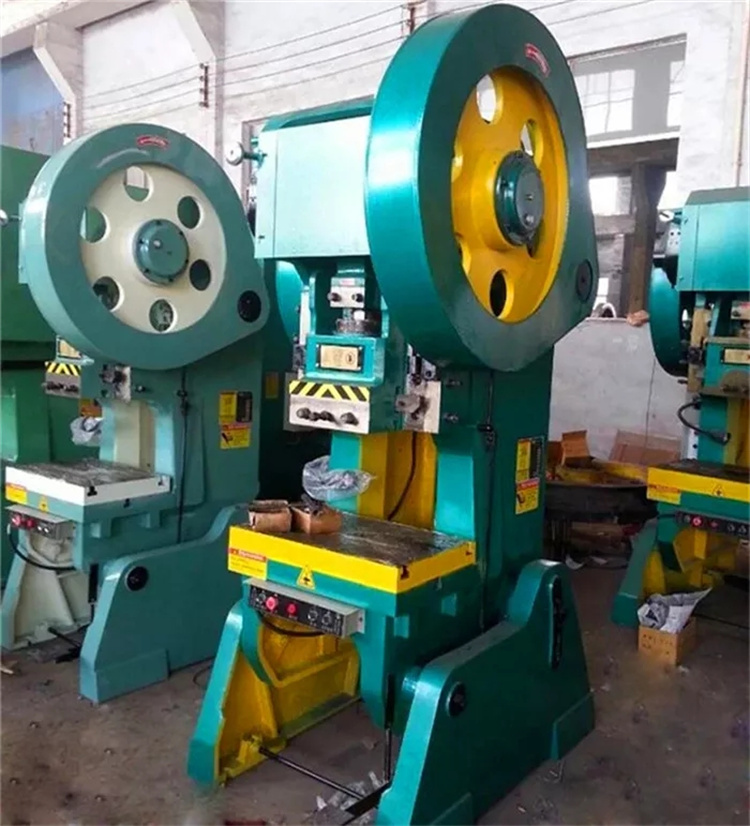

200 ton J23 c press mechanical punching machine

J23 series are general open-tilting power press with simple structure ,reliable performance and easy operation .J23 can adopt rigid turn-key clutch .
So, it is convenient for operation and maintenance .J23 can also adopt emergency stop service to make the slider block suddenly stop on the range of 0-135 degree,and the photoelectrical protector device is optional .
J23-100B and J23-125 are special among the J23 series .Their main body is cast in iron .The cranked axle is settled vertically .Eccentric sleeve makes easy adjustment .And there is also pneumatic friction.Therefore ,J23-100B and J23-125 enable to work with small impact and sationarity and make slider block stop at any position .

ការបញ្ជាក់		Units	JB23-40	JB23-63	JB23-63A
សម្ពាធនាមករណ៍		ខេ.អិន	400	630	630
Nominal force stroke		ម	4	4	4
Slider stroke		ម	80	80	80
Number of slider stroke		times/min	50	50	50
Maximum die set height		ម	230	250	300
Die set height adjustment		ម	45	50	50
Distance from slider center to frame		ម	220	250	250
Worktable dimension		ម	390x630	420x650	470x750
Thickness of the worktable panel		ម	70	70	80
Size of the handle hole (diameter x depth)		ម	φ50x70	φ50x70	φ50x70
Vertical columns distance		ម	330	320	390
Main motor	គំរូ		Y112M-4	Y132S-4	Y132S-4
Main motor	ថាមពល	គីឡូវ៉ាត់	4	5.5	5.5
Maximum tilting angle of body		°	25	25	25
Overall dimension(LxWxH)		ម	1600X1100X2250	1740X1100X2560	1740X1180X2560
ទម្ងន់		គក	2960	3800	4300
